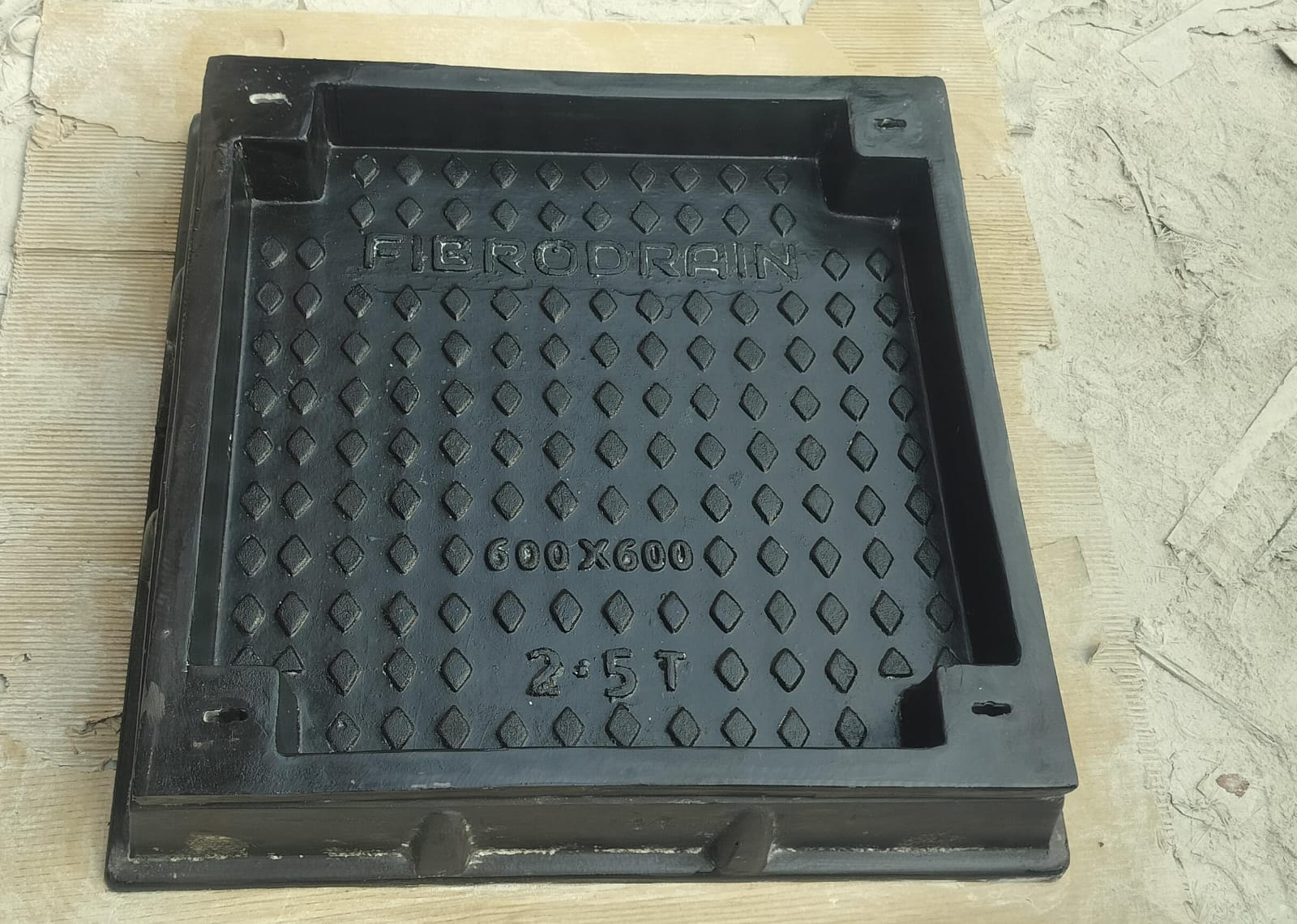

FIBRODRIAN RECESS MANHOLE COVERS
FIBRODRAIN Recess Manhole Covers with frames are tested as per BS EN 124, IS 1726 & AASHTO M306 standards for drainage and utility services, ensuring reliable performance. They provide superior strength, durability and long-lasting performance compared to Cast Iron, Ductile Iron and RCC recess covers.
Material: FRP / GRP / Composite
- Load bearing capacity: From 2.5 tons up to D400 (40 tons)
- Available in circular, square and rectangular shapes
- Double seal arrangement for added safety
- Lightweight and easy to handle, superior to conventional materials
- Zero permanent set – retains shape and strength under load
- 65 mm recess depth for fixing cement, tiles, blocks, or other finishes
- All keyholes have closed bottoms (not through & through) for longer life
Properties of Fibrodrain Recess Covers
- Closed Keyholes – All lifting keyholes are closed at the bottom, preventing foul smell and dust from entering the chamber.
- Double Seal Design – Each manhole cover has a double seal for extra safety and protection.
- Reinforced Keyhole Inserts – High-strength plastic alloy or stainless steel inserts ensure durability around keyholes during repeated use.
Frame Opening Sizes
| Size (mm) | Circular | Rectangular | Square |
|---|---|---|---|
| 500 | 500 mm (20") | - | 300 mm × 300 mm (12" × 12") |
| 600 | 600 mm (24") | 600 mm × 450 mm (24" × 18") | 450 mm × 450 mm (18" × 18") |
| 690 | 690 mm (27") | - | 600 mm × 600 mm (24" × 24") |
| 762 | 762 mm (30") | - | 750 mm × 750 mm (29" × 29") |
| 900 | 900 mm (36") | 900 mm × 450 mm (36" × 18") | 900 mm × 900 mm (36" × 36") |
| 1000 | 1000 mm (40") | 990 mm × 1220 mm (40" × 49") | 1000 mm × 1000 mm (40" × 40") |
| 1200 | - | - | 1200 mm × 1200 mm (48" × 48") |
