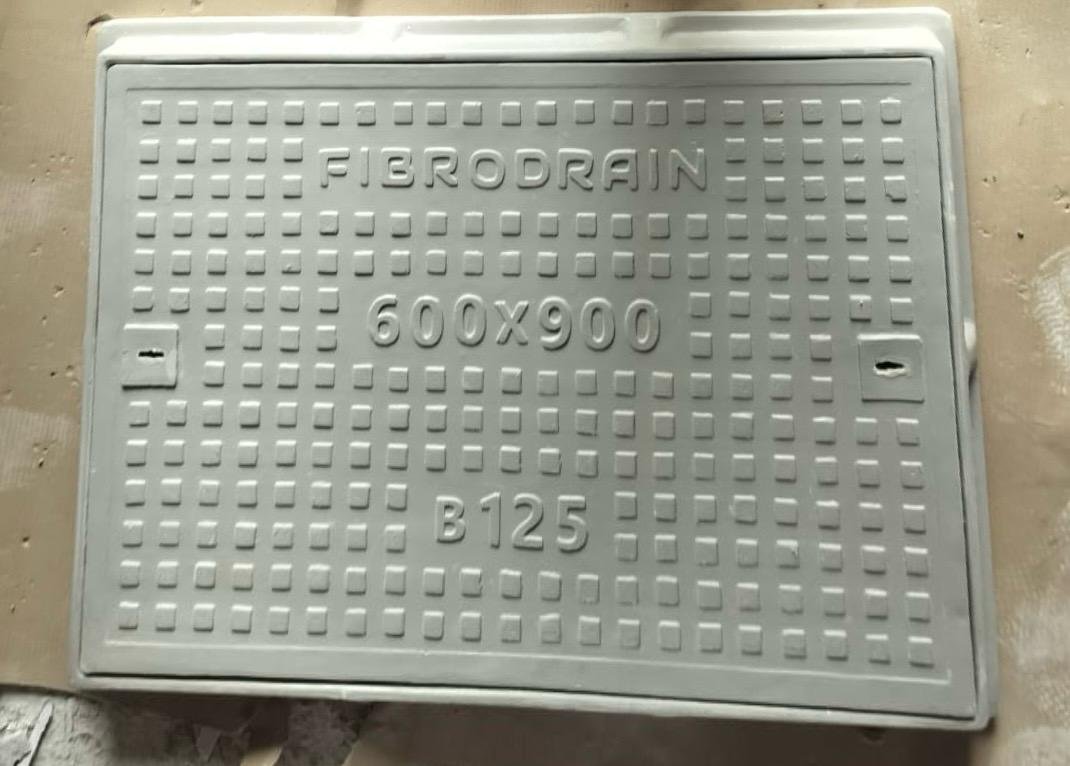

FIBRODRAIN Solid Top Manhole Covers with Frame
FIBRODRAIN Solid Top Manhole Covers are tested as per BS EN 124, IS1726 & AASHTO M306 standards for drainage and utility services meeting all requirements of the code. They perform better than Cast Iron, Ductile Iron and RCC manhole covers, offering superior durability, strength and long service life.
Salient Features
- Double Sealed Arrangement
- Q-Turn Locking or Bolt Locking Available
- Closed Bottom Keyhole prevents mosquito breeding and emission of foul smell
- Permanent set is as per BS EN 124 for all sizes and load bearing
- Self-Pigmented and Non-Brittle Construction
Key Highlights
- Material: FRP / GRP / Composite Material
- Load Bearing Capacity: 2.5T (2.5 Tons) to F900 (90 Tons)
- Shapes: Circular, Square and Rectangular
- Seal: Double Seal Arrangements
- Closed Bottom Keyholes with Stainless Steel or High-Strength Plastic Alloy Inserts (Prevents Cracking)
Properties of Solid Top Manhole Covers
- Closed Keyholes – All lifting keyholes are closed at the bottom. This prevents foul smell from escaping and stops dust or foreign particles from entering the chamber.
- Double Seal Design – Every manhole cover has a double seal for extra safety and protection.
- Reinforced Keyhole Inserts – All lifting keyholes are fitted with high-strength plastic alloy or stainless steel sockets. This ensures the area around the keyholes does not get damaged even after repeated lifting operations.
Frame Opening Sizes
| Size (mm) | Circular | Rectangular | Square |
|---|---|---|---|
| 400 | 400 mm (16") | - | 300 mm × 300 mm (12" × 12") |
| 450 | 450 mm (17") | - | 450 mm × 450 mm (18" × 18") |
| 500 | 500 mm (20") | - | 600 mm × 600 mm (24" × 24") |
| 600 | 600 mm (24") | 600 mm × 450 mm (24" × 18") | 675 mm × 675 mm (27" × 27") |
| 690 | 690 mm (27") | - | 750 mm × 750 mm (29" × 29") |
| 762 | 762 mm (30") | - | 900 mm × 900 mm (36" × 36") |
| 900 | 900 mm (36") | 900 mm × 450 mm (36" × 18") | 1000 mm × 1000 mm (40" × 40") |
| 1000 | 1000 mm (40") | 990 mm × 1220 mm (40" × 49") | 1200 mm × 1200 mm (48" × 48") |
| 1400 | 1400 mm (55") (2 covers with single frame) | - | 1500 mm × 1500 mm (60" × 60") |
